Engineered Retaining Walls

& Structural Earth Retention

Systems

Design & construction of

durable retaining walls

We provide retention solutions built for

stability, longevity & style

A structurally sound retaining wall is a critical part of the project

When an inadequately constructed wall fails

there is usually a house or garage now blocking the access to replace it

An average wall 1m High x 10m Long on a 30 degree slope will

be holding back 8.2 Tons of lateral pressure

this increases to 15.2 tons without adequate drainage

We build engineered structurally sound walls that last

How Can We Help You ?

  • Site excavation , Post holes & Backfill , project completion site clean & level

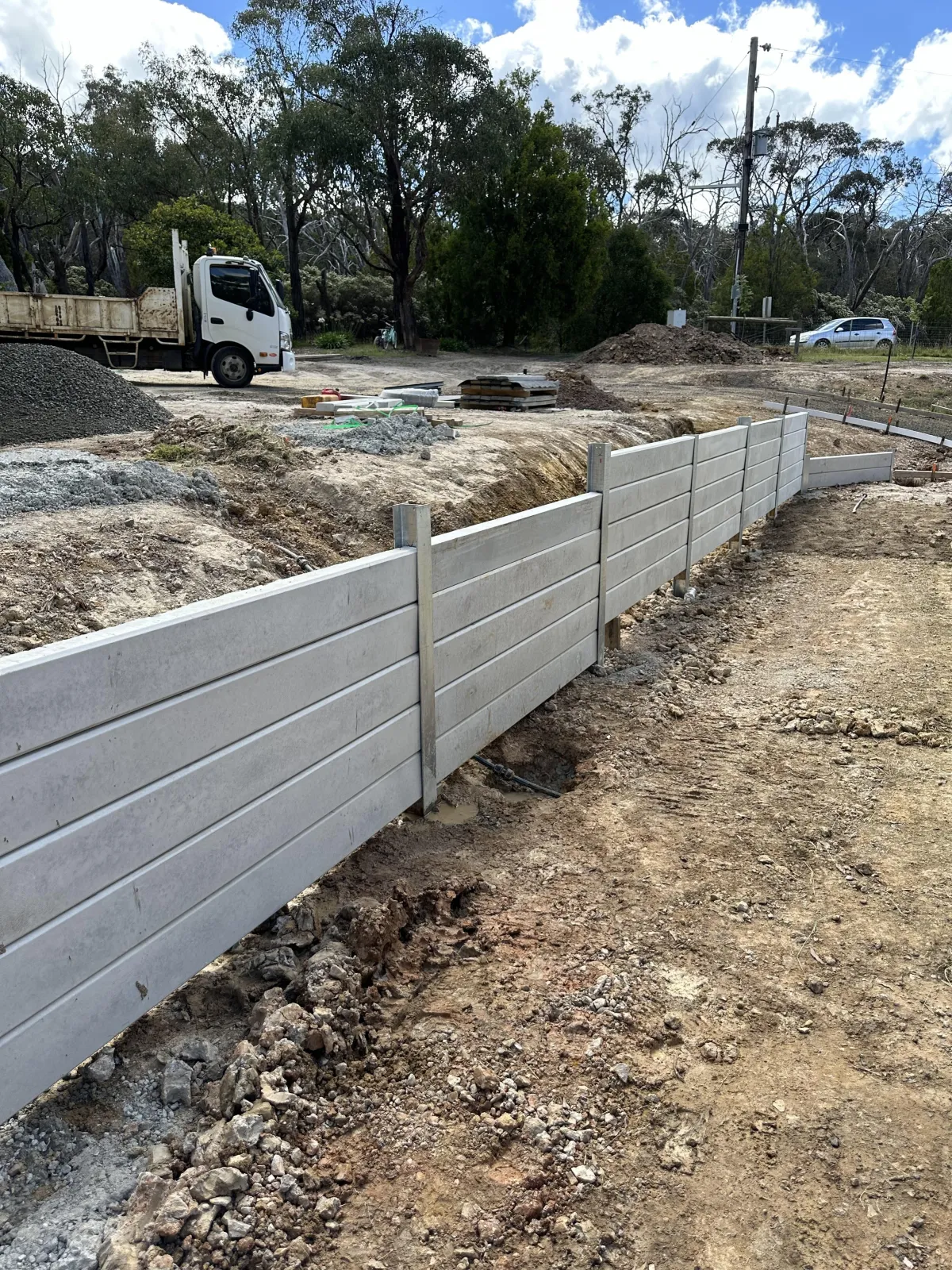

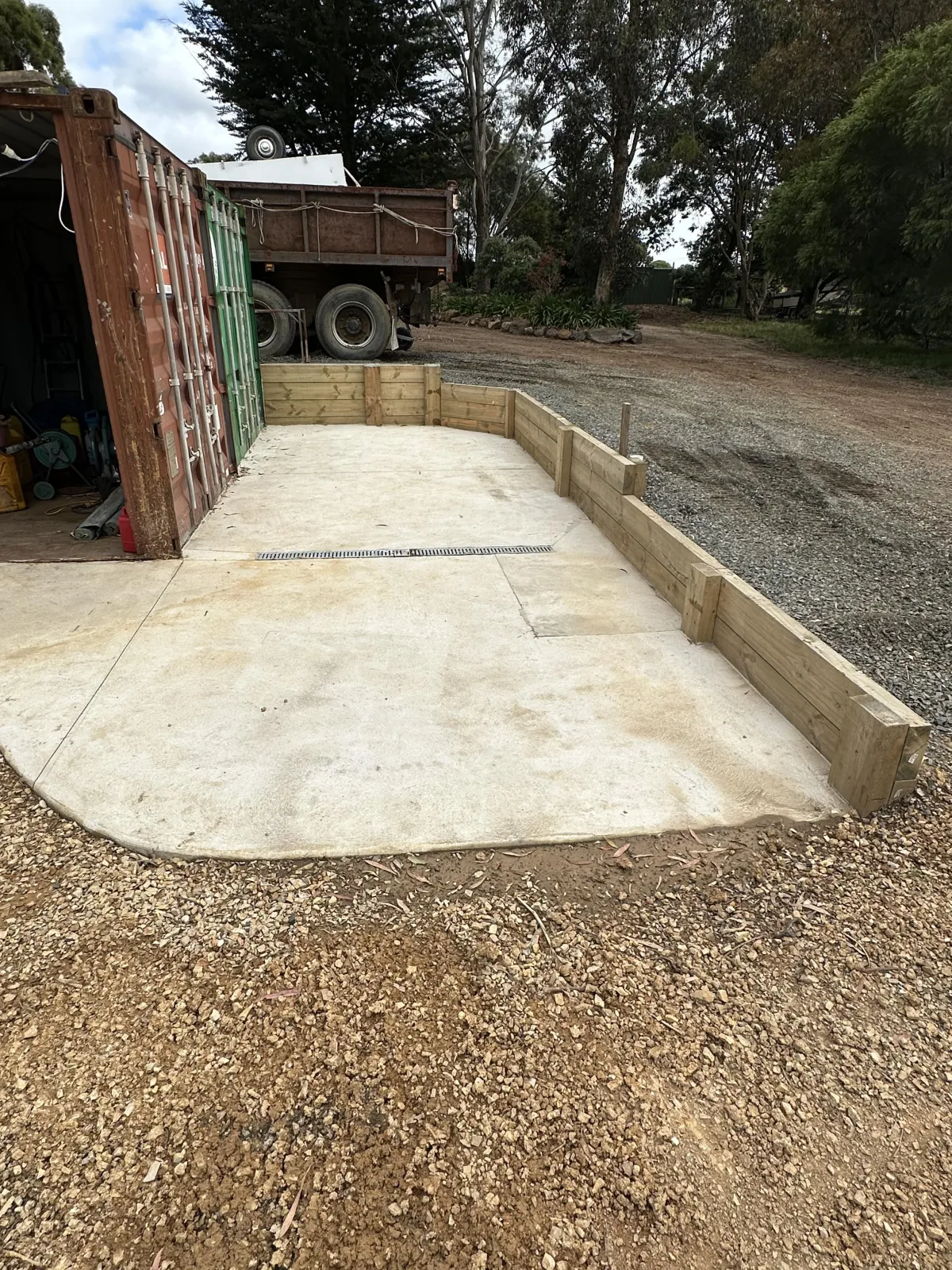

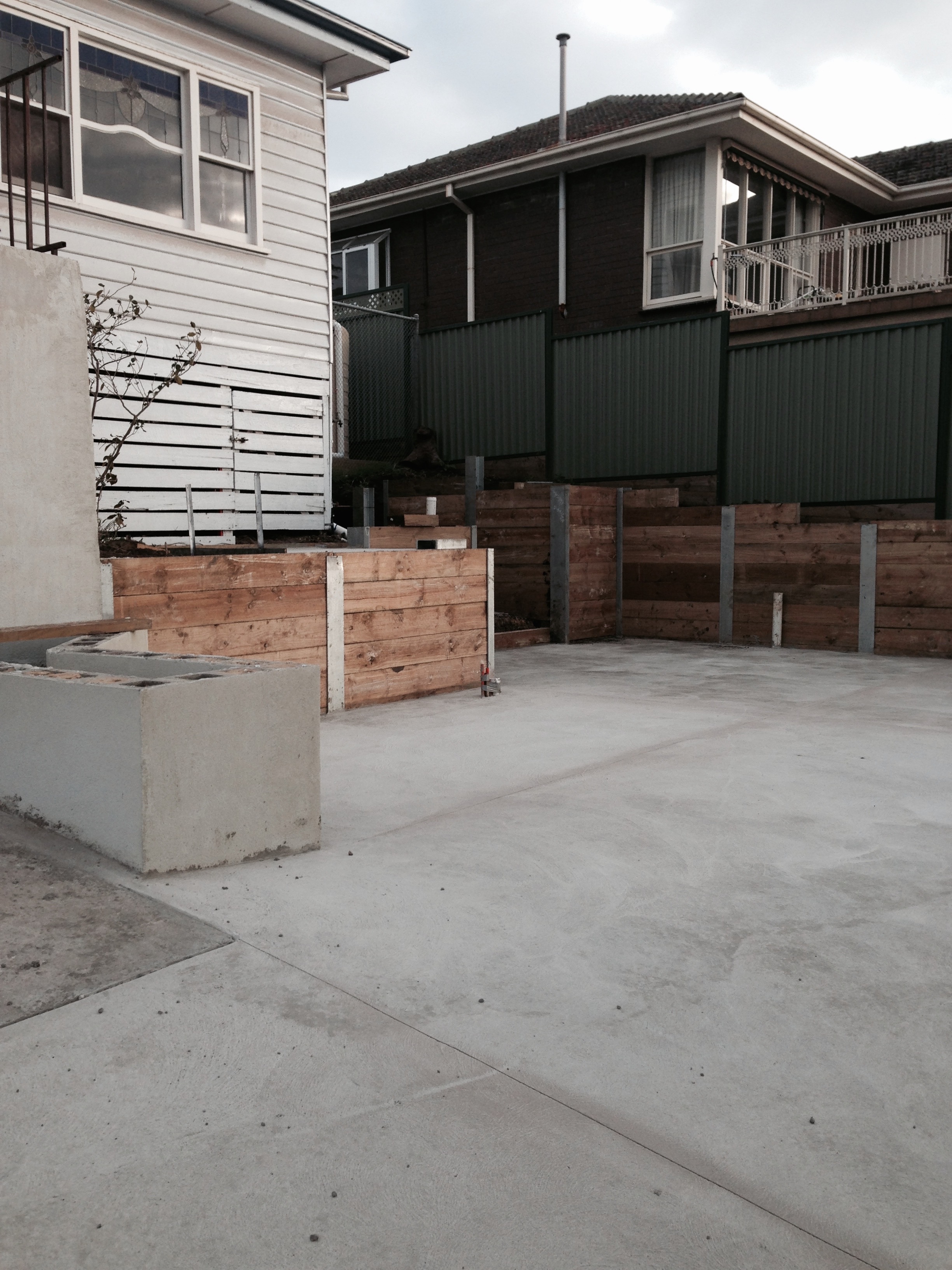

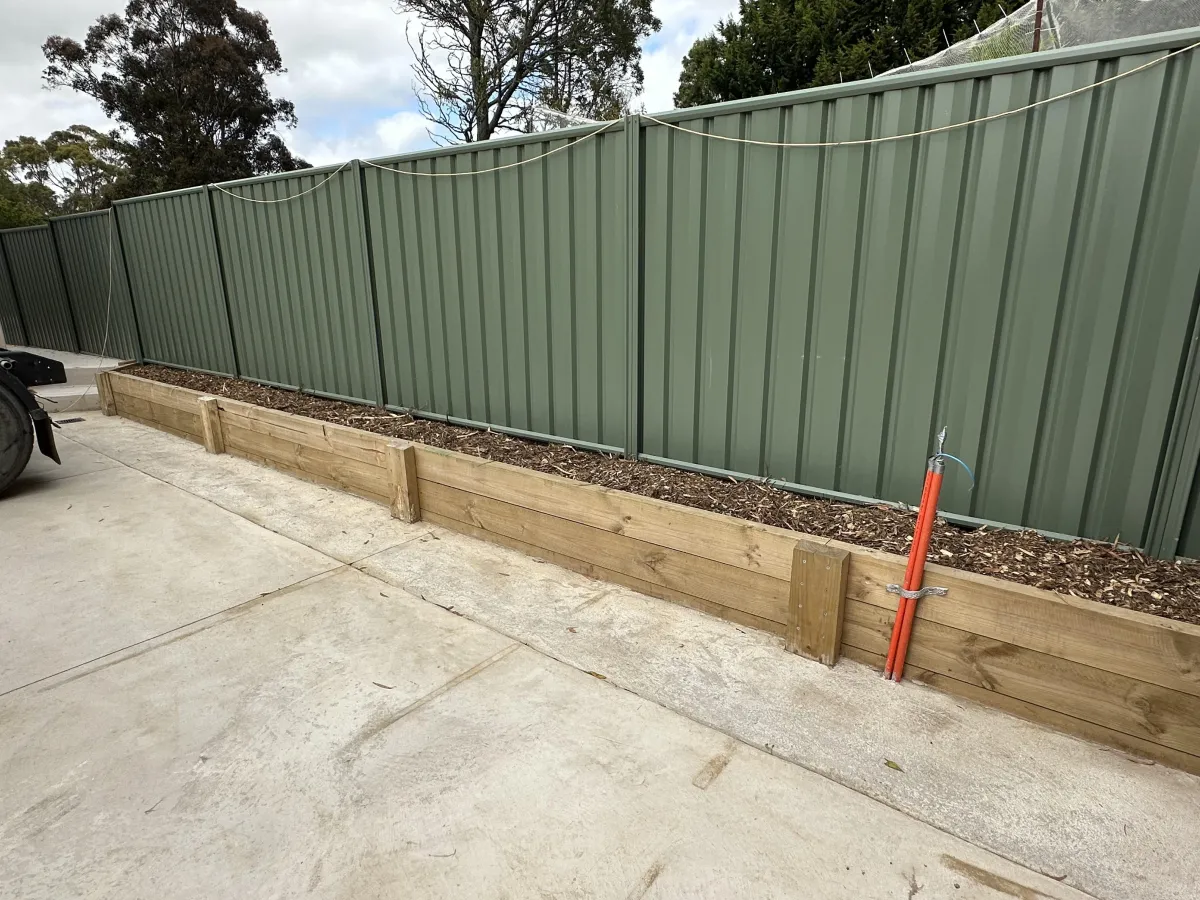

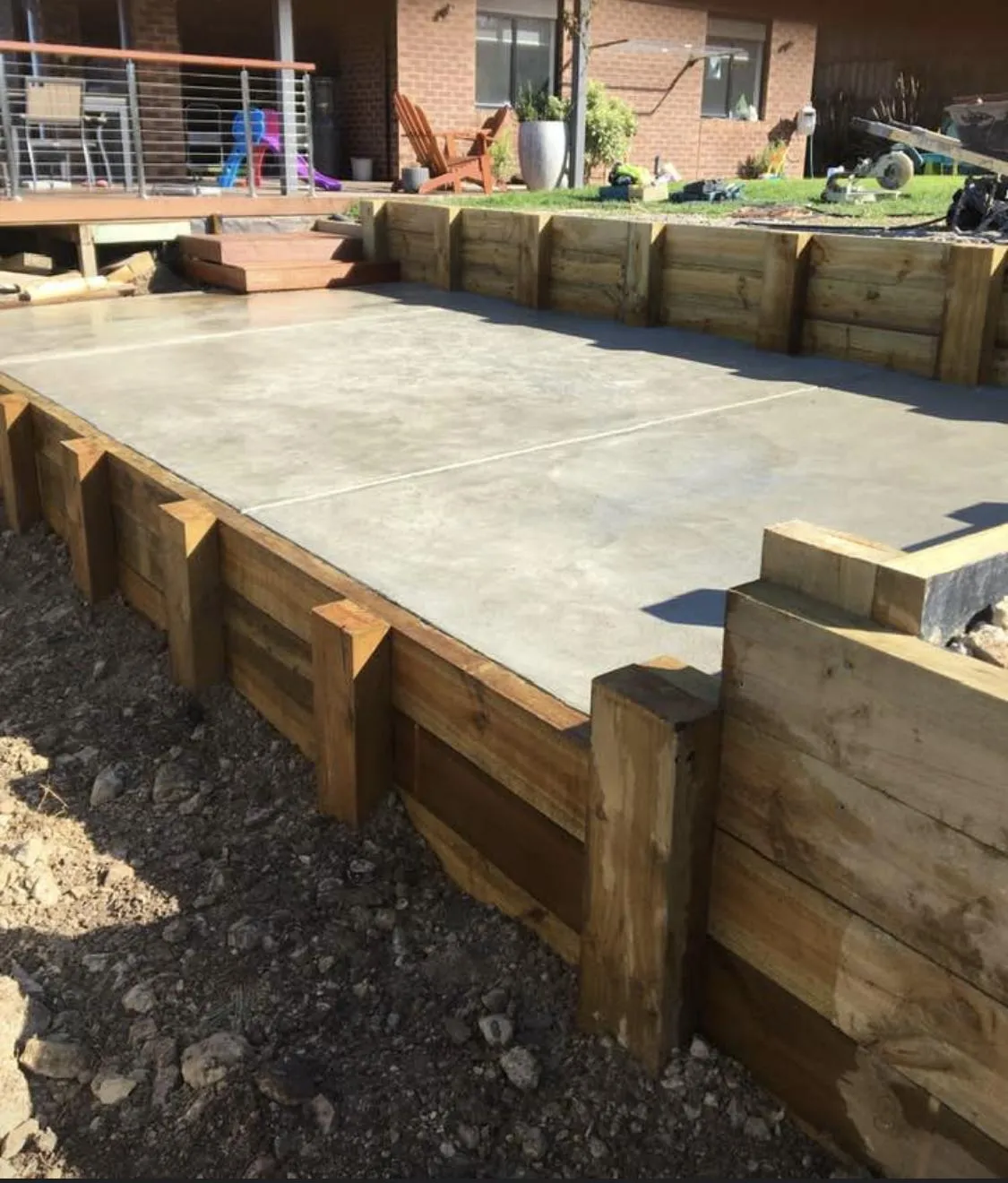

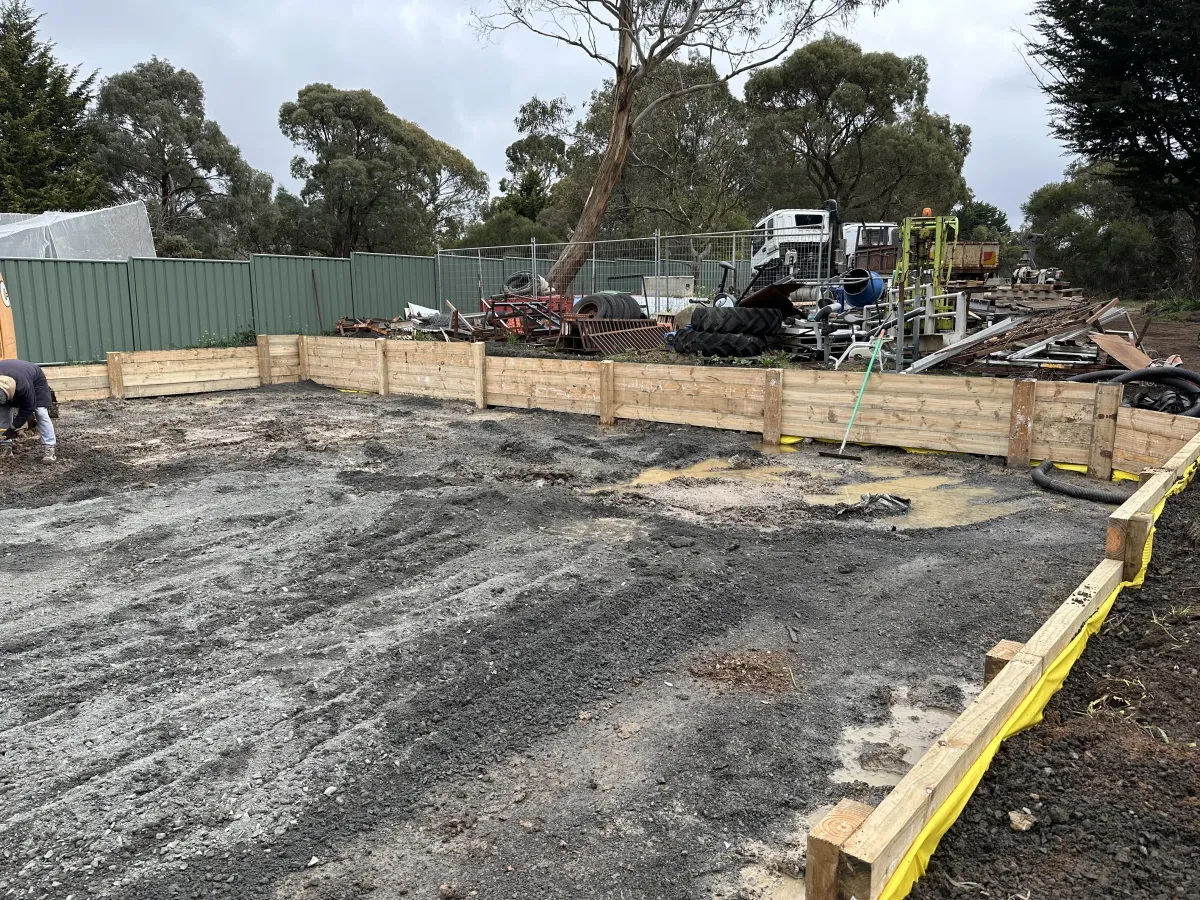

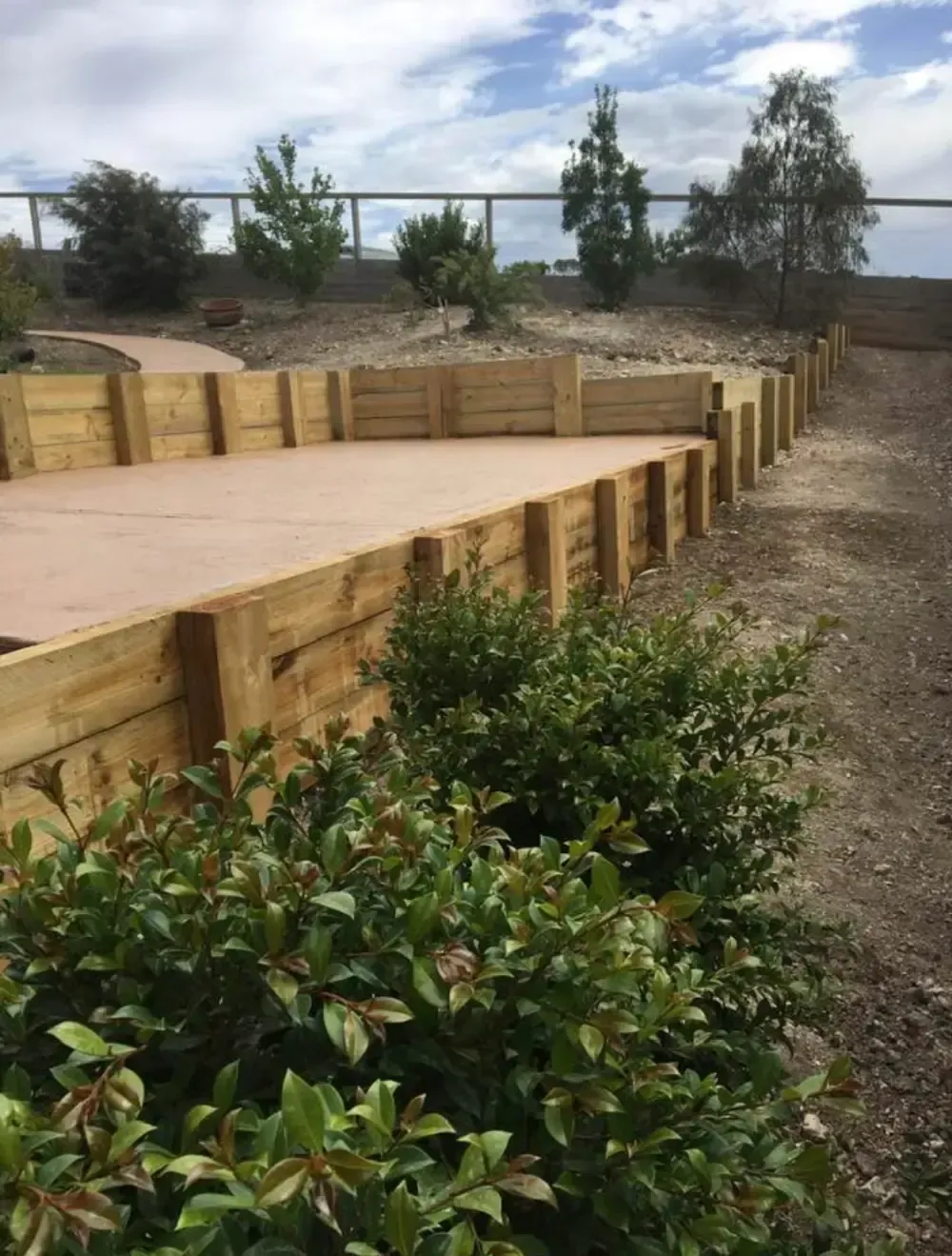

  • Timber & Concrete sleepers , Besa block walls & core fill , render texture coating

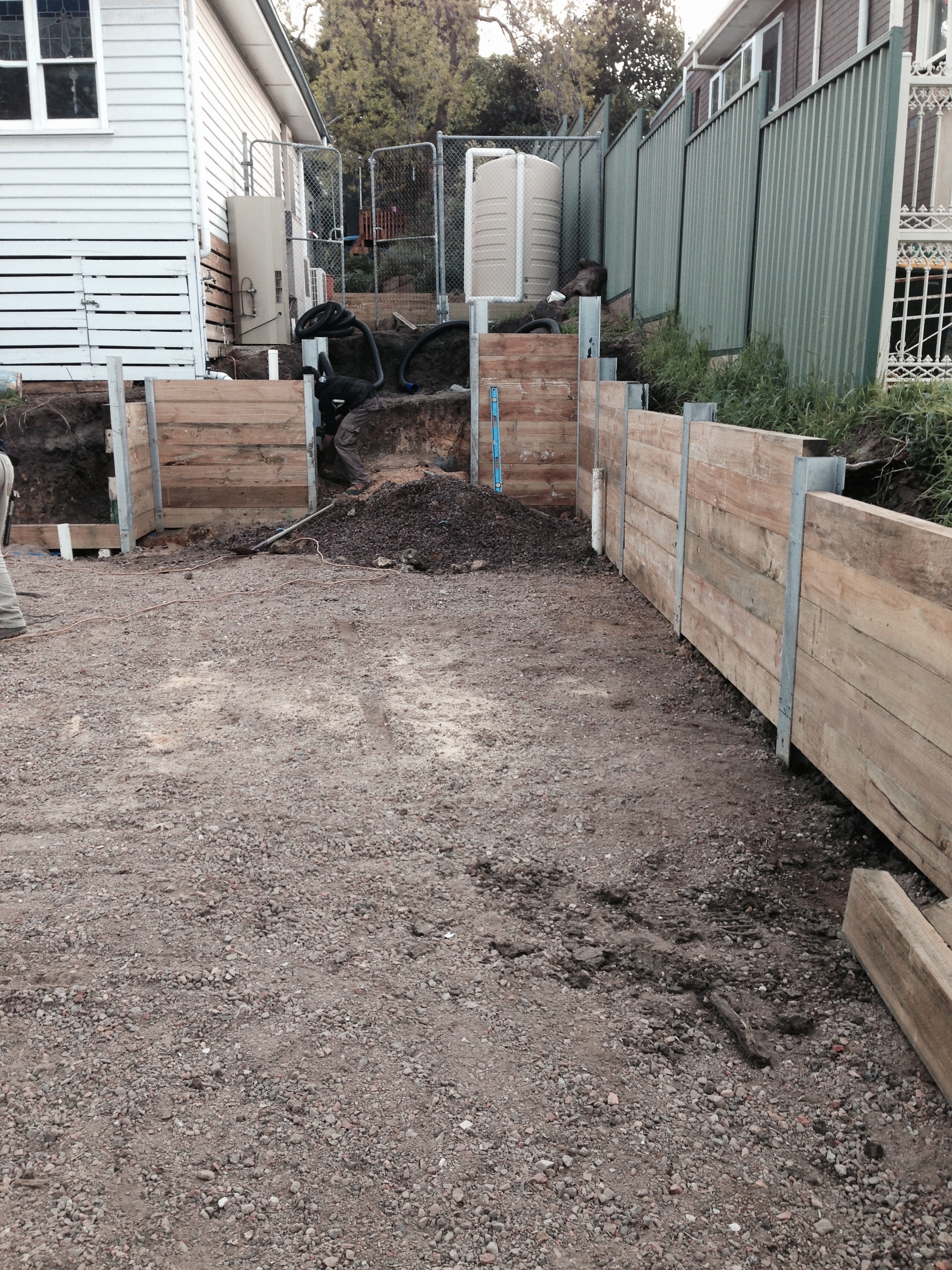

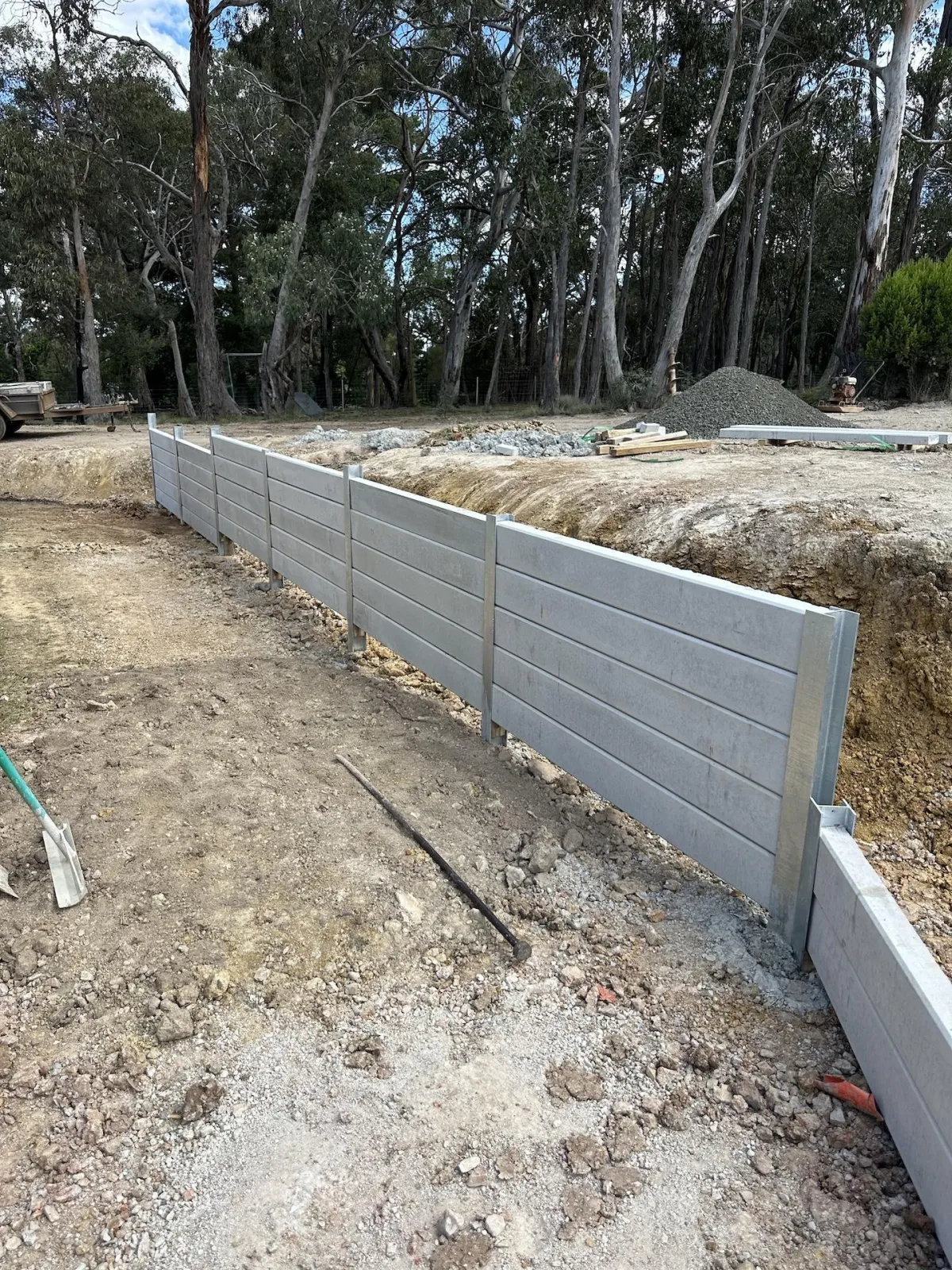

  • H beam Steel uprights, sleeper uprights , Footings excavated & poured

  • Tanking , & drainage installation , silt pits , weather treatments

Free On Site Visit And Detailed Quote

We Service All Of Rural & Regional Victoria

Insured, Licenced, Certified

Frequently Asked Questions

"Our 3 most common asked questions with detailed answers

written by the person who actually does the work "

Question 1: How high can I build a retaining wall before it requires a council permit ?

The regulations for wall height can vary depending on the council but generally in most cases you can build a retaining wall up to 1 meter high without council approval

Question 2: Do I need steel uprights or can I use timber sleepers ?

It depends on the height and location of the wall. If the wall is under 1m in height and not retaining lateral pressure then timber sleepers can be used as uprights . Lateral basically means "moving towards" so if your land has a 30 degree slope north to south and you want to build a wall on the east side fence line because your property is lower than the neighbours , the lateral pressure is from the top north end to the bottom south end . The pressure from east to west is significantly lower. Remember that timber sleepers are prone to rotting over time so always coat them with a thick bitumen paint on any area that will be covered underground

Question 3: Can I back fill the wall with soil or dirt ?

Unless its a one or two sleeper high garden edge with no lateral pressure then No , never back fill a retaining wall with soil or dirt. The reason is Hydrostatic Pressure , when it rains all the water runs to the lowest point which is usually behind the retaining wall , when the soil gets wet its weight increase significantly and almost doubles the pressure the wall needs to hold back the second reason is once the water is in the soil it doesn't dry out and starts to rot away the sleepers and reduces the life of the wall . You should always backfill a wall with scoria or a 40mm aggregate with no fines , run a slotted ag drain on an angle approx 200mm off the ground level , this will catch the water and drain it away , you can top dress the scoria with a 150mm layer of top soil if you intend to have a garden or grass in the area being retained

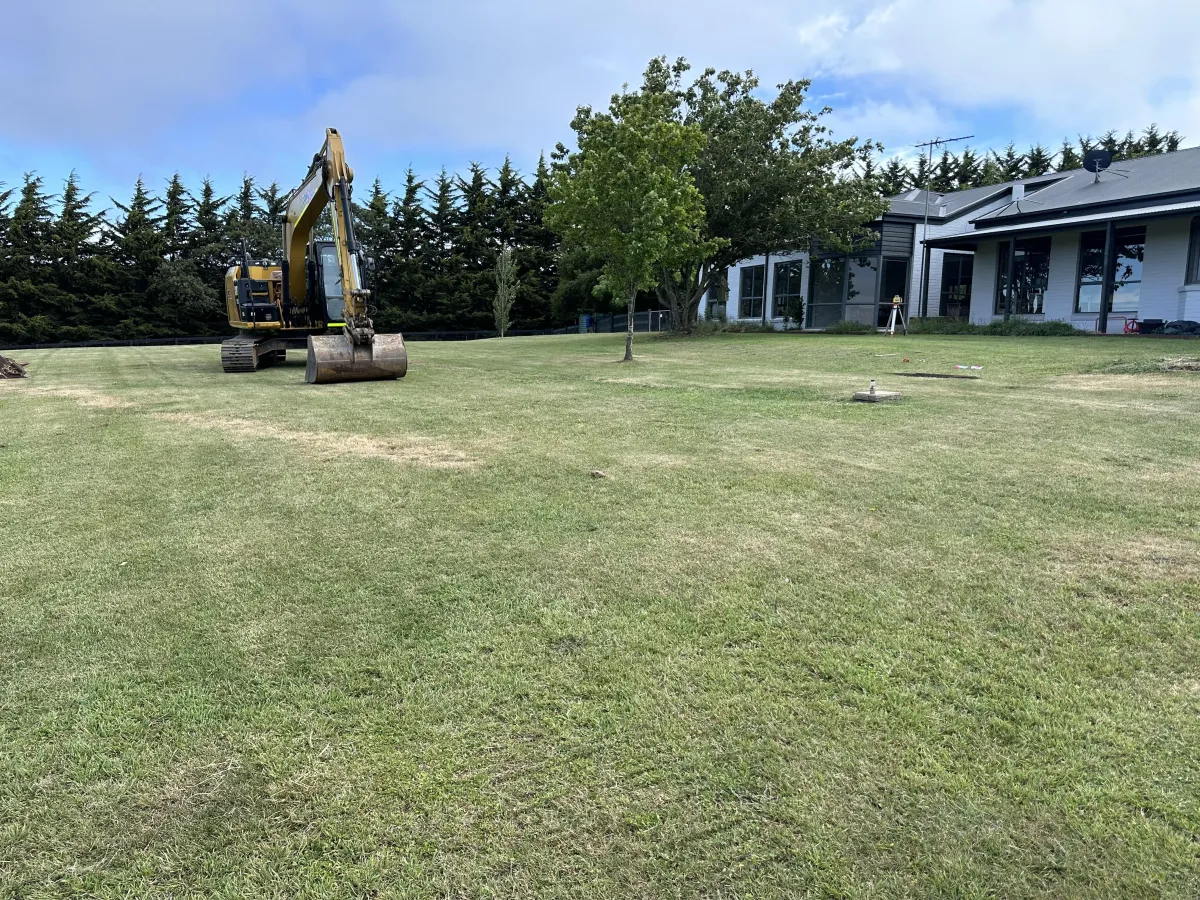

Most retaining wall projects require the site to be cut

to the correct level prior to the wall being built

We can combine the excavations & retaining wall construction

into one quote saving you the time & expense of

organising multiple contractors

What Is The Process To Complete A Project?

We use a proven 5 step process to ensure your project is

managed & completed to the highest possible standards

  • Site Analysis of soil type & layout from structural plans

  • Deep set footings & pier holes

  • Precision upright & structural installation

  • Advance drainage & hydrostatic relief

  • Backfill, compaction & final grade

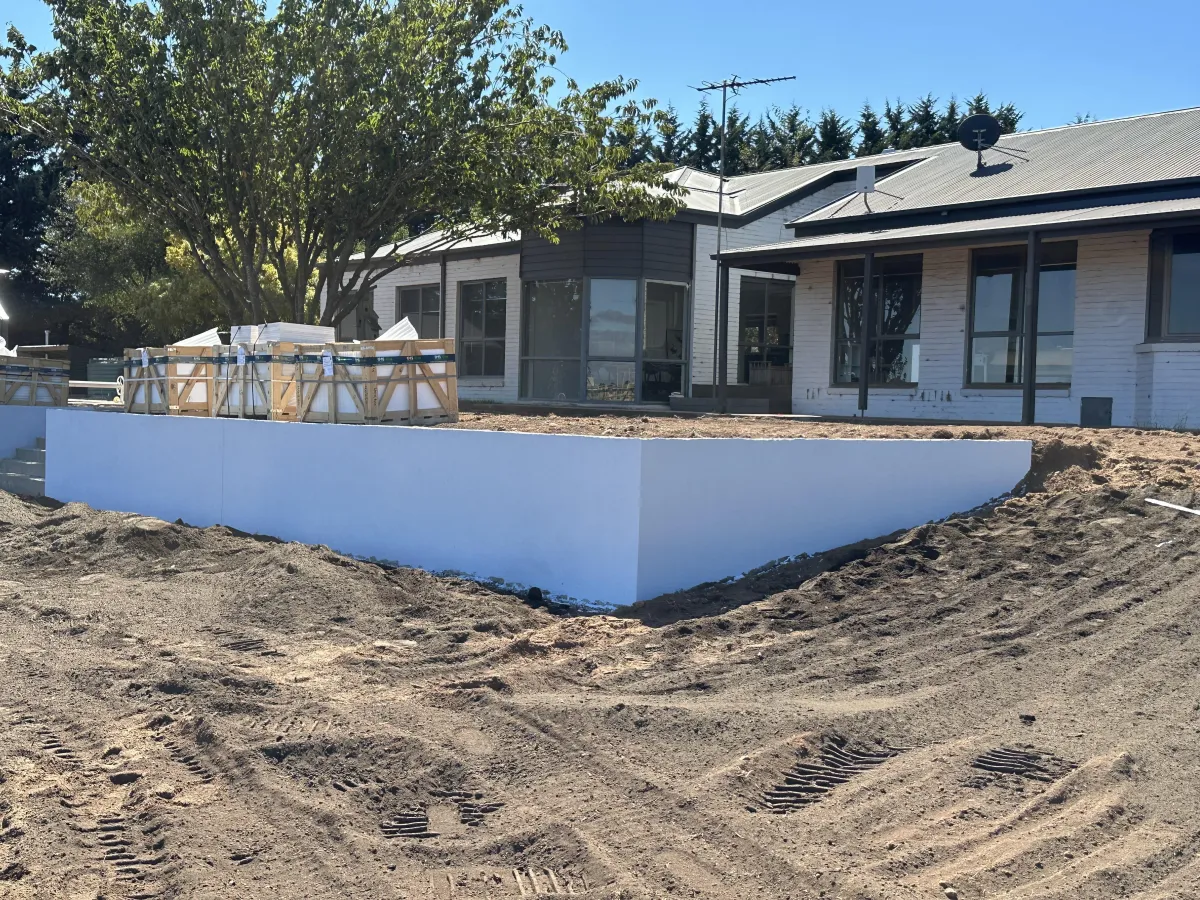

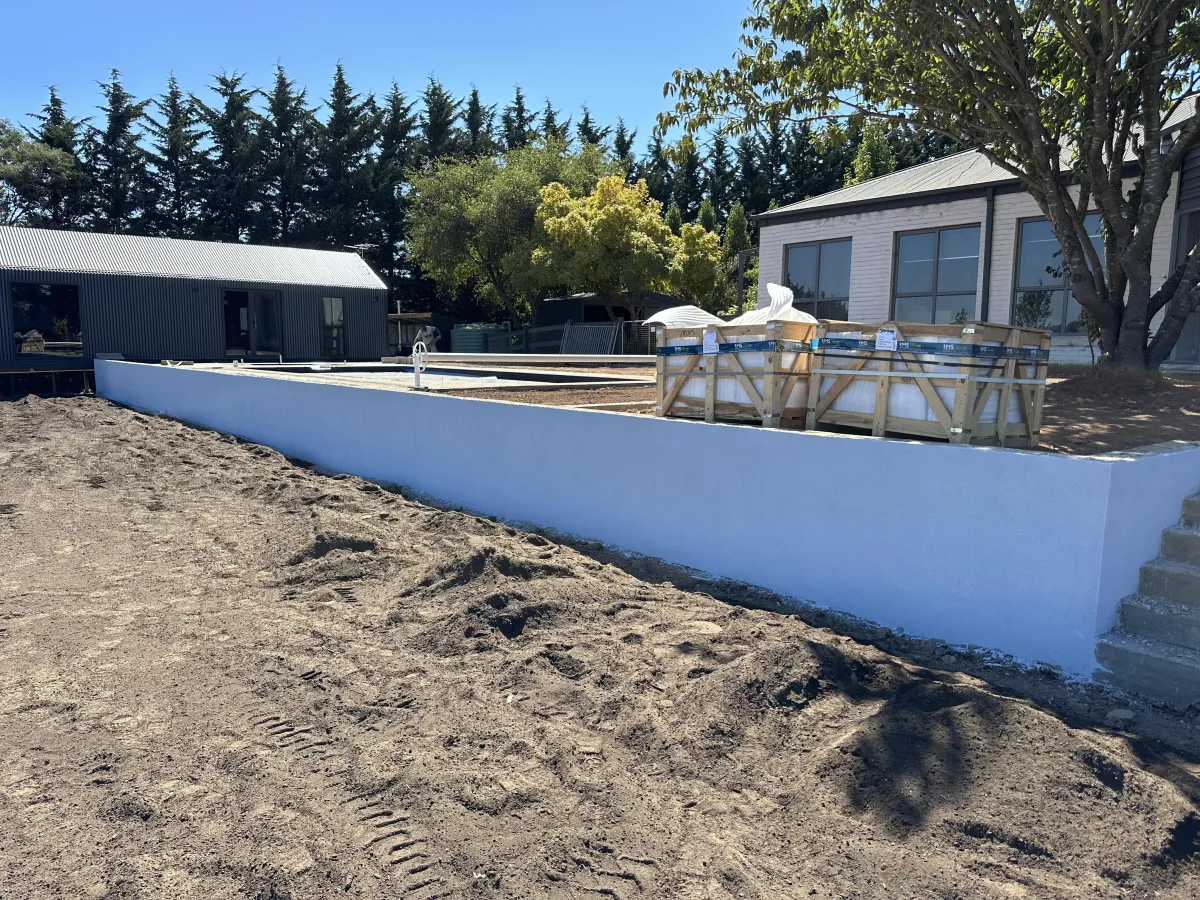

Using our 5 step process we were able to assist

this client to transform a gentle sloping gradient into a two tier split level

area separated by a besa block retaining wall.

The wall was constructed

to withstand the pressure of a new in ground swimming pool

& finished with a rendered colour texture

matching the existing house

EARTHLINE EXCAVATIONS

Trust, Communication & Quality

READY TO GET STARTED ?

Contact Mark & the team today to arrange a free,

no-obligation site visit &

quote for your property
